Kii Audio THREE System

16 04019 101

High end technologie in een compacte behuizing !

Each Kii THREE contains a multi channel DSP, multiple DACs and power amplifiers. Few companies could pull off such a densely packed design with truly world class performance electronics. But then again, few active speakers are designed by people who have previously turned high end power amplification and digital conversion around.

Each Kii THREE holds 1.500 W amplification power. Designed by Bruno Putzeys using the latest iteration of class D technology. Unique to the implementation used in the Kii THREE is a combined voltage/current control loop that goes beyond merely a better amp – it actively improves the distortion performance of the drive units which contributes significantly to the extreme resolution of the speaker.

Naturally, this means that the performance of the AD/DA conversion has to match that of the amps. This task fell to Bart van der Laan who has a long track record designing DSP and converter boards for high-end professional audio equipment. Kii Audio’s implementation is a runaway success: a complete pass through the AD/DA circuitry of the THREE’s signal processing board is entirely inaudible, a feat not duplicated by the most expensive audiophile standalone units.

Alongside the Active Wave Focusing filters the DSP is responsible for keeping the drive units within their safe operating range by gently adapting the filters instead of brutally limiting the signal, allowing the THREE to play significantly louder and cleaner than much bigger traditional designs.

On the input side there is a choice of analogue, digital inputs. All digital inputs are re-sampled and reclocked using Kii’s own jitter rejection algorithm that guarantees actual “bits is bits” audio performance for any digital source.

The electronics package alone sets a milestone. What it does in concert with the unique acoustic design defies imagination. You have to hear it to realise the magnitude of the revolution the Kii THREE represents.

16 04019 101
terug naar overzicht

SKU: Kii THREE System Category:
Extra informatie

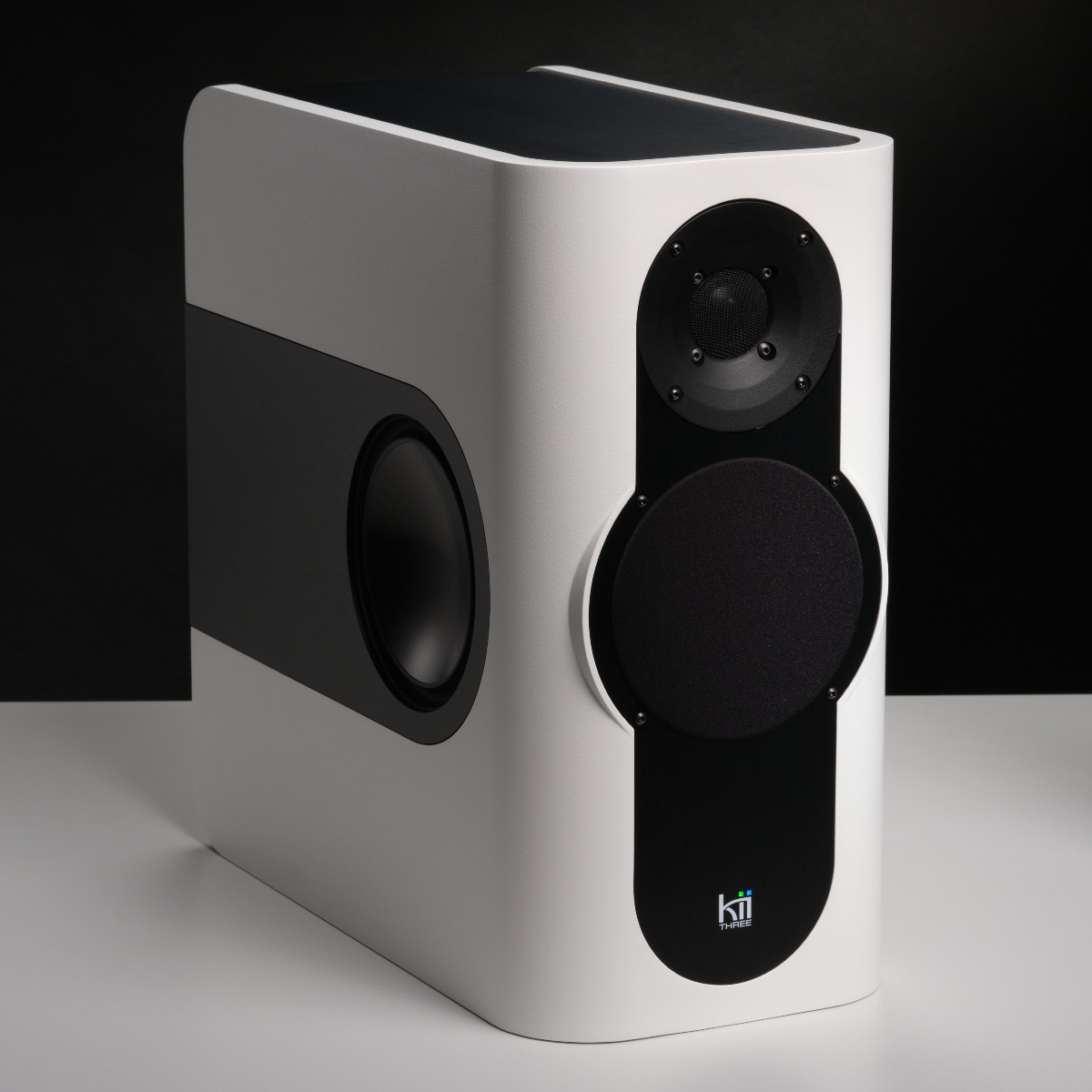

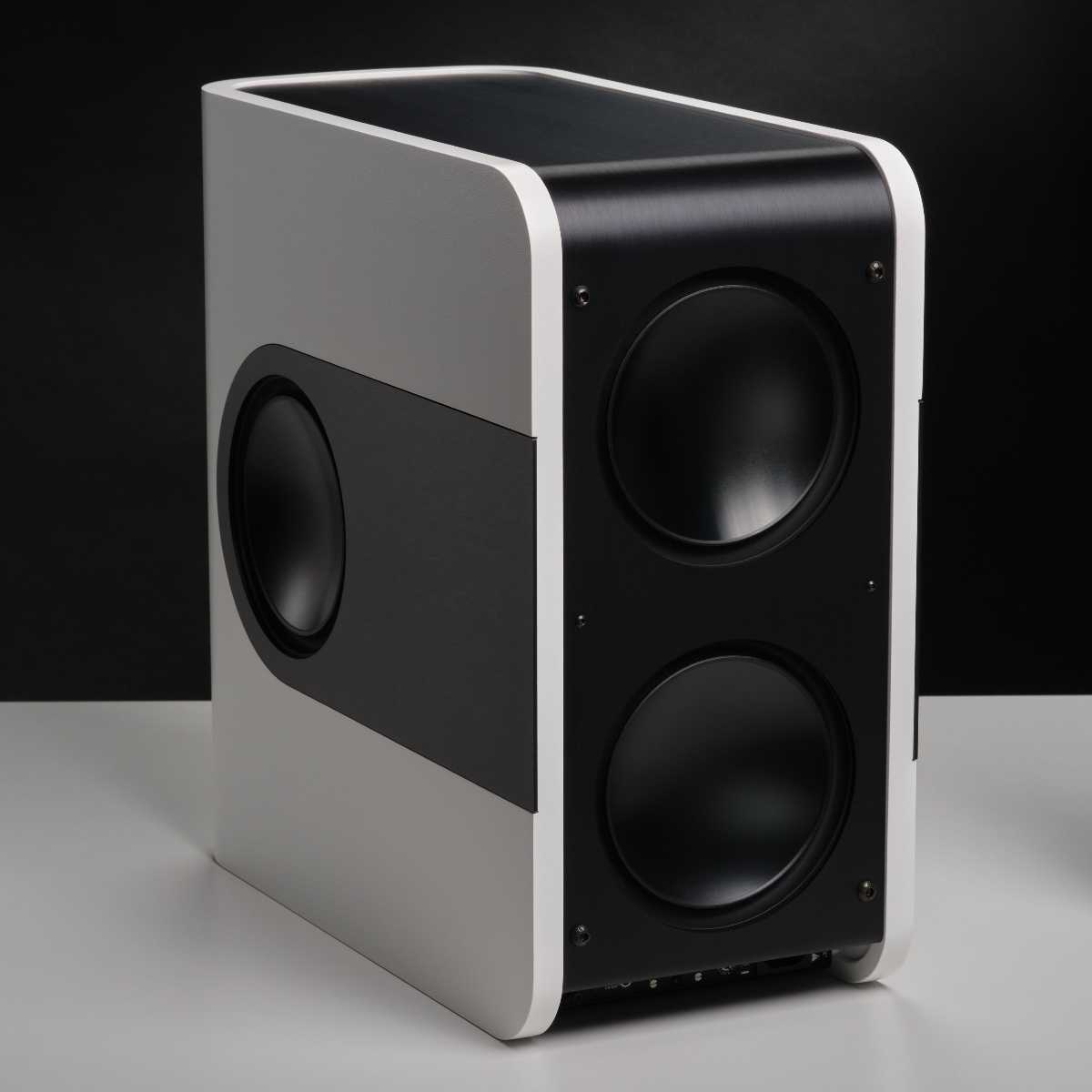

4 x 6.5” woofer, 1×5” midrange, 1” waveguided tweeter, individueel aangestuurd
Versterking : 6x250W Purify (power consumption in standby < 0,5 Watt)
Active Wave Focusing crossover filter
Frequentie bereik : 30Hz to 25kHz +/- 0.5dB
Phase response: minimum (best possible time coherence).
Long term SPL(*) : 105dB / Short term SPL(*): 110dB / Peak SPL: 115dB
Controlled Directivity : 4.8dB (80Hz – 1kHz, slowly rising thereafter)
Afmetingen : 20x40x40cm (BxHxD)
Gewicht : 15 kg

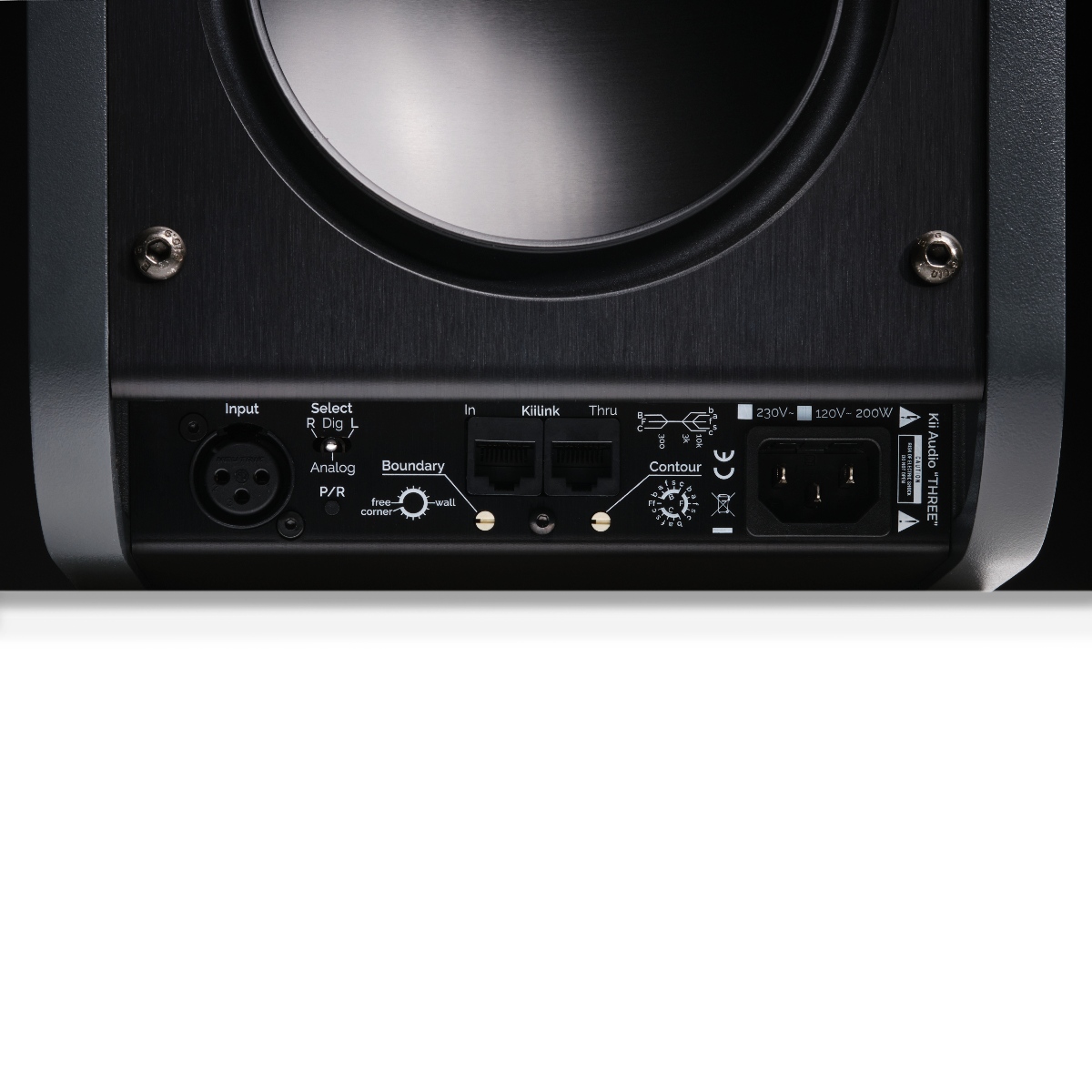

Ingangen : Analoog, AES/EBU
Selectable correction for free-standing, near wall or in corner

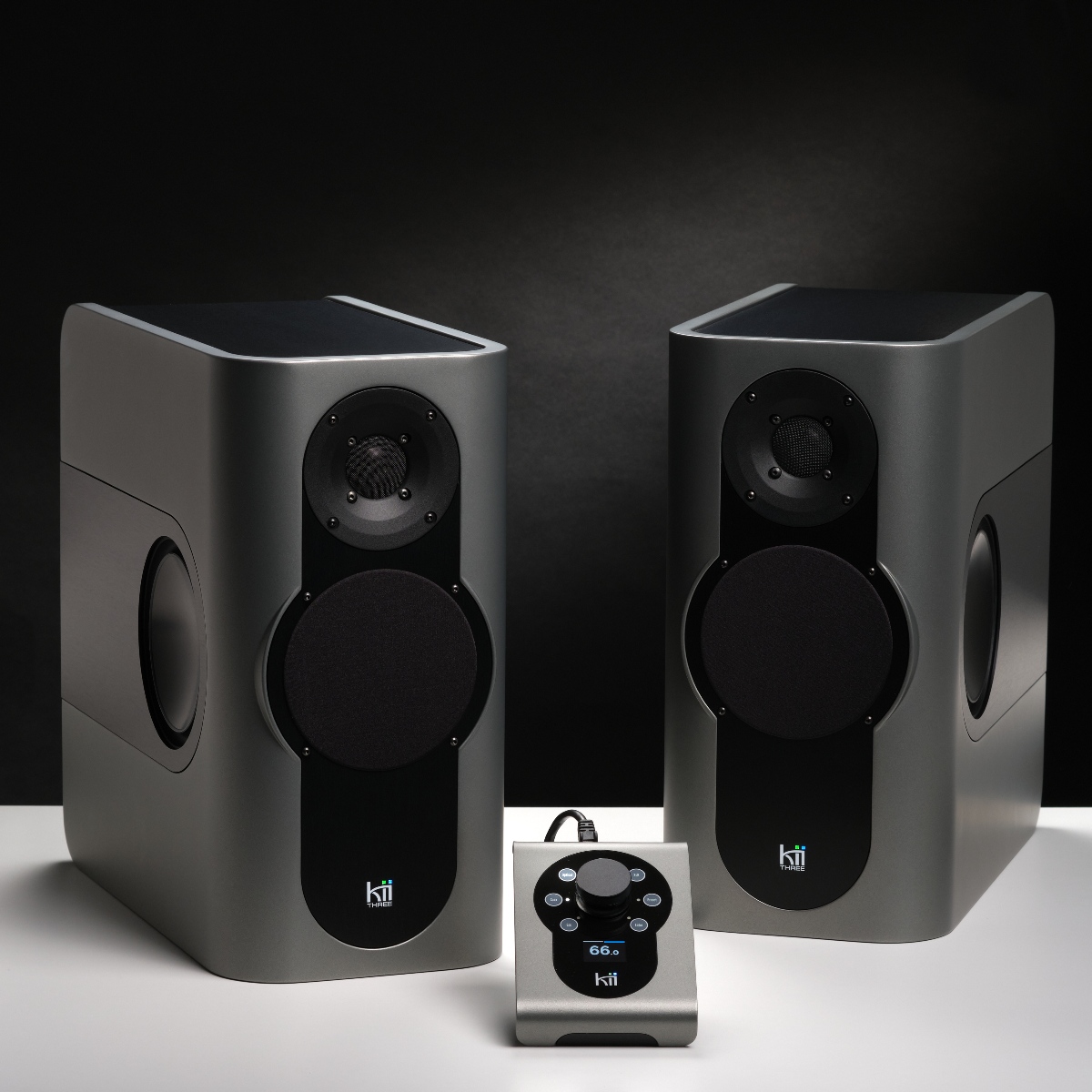

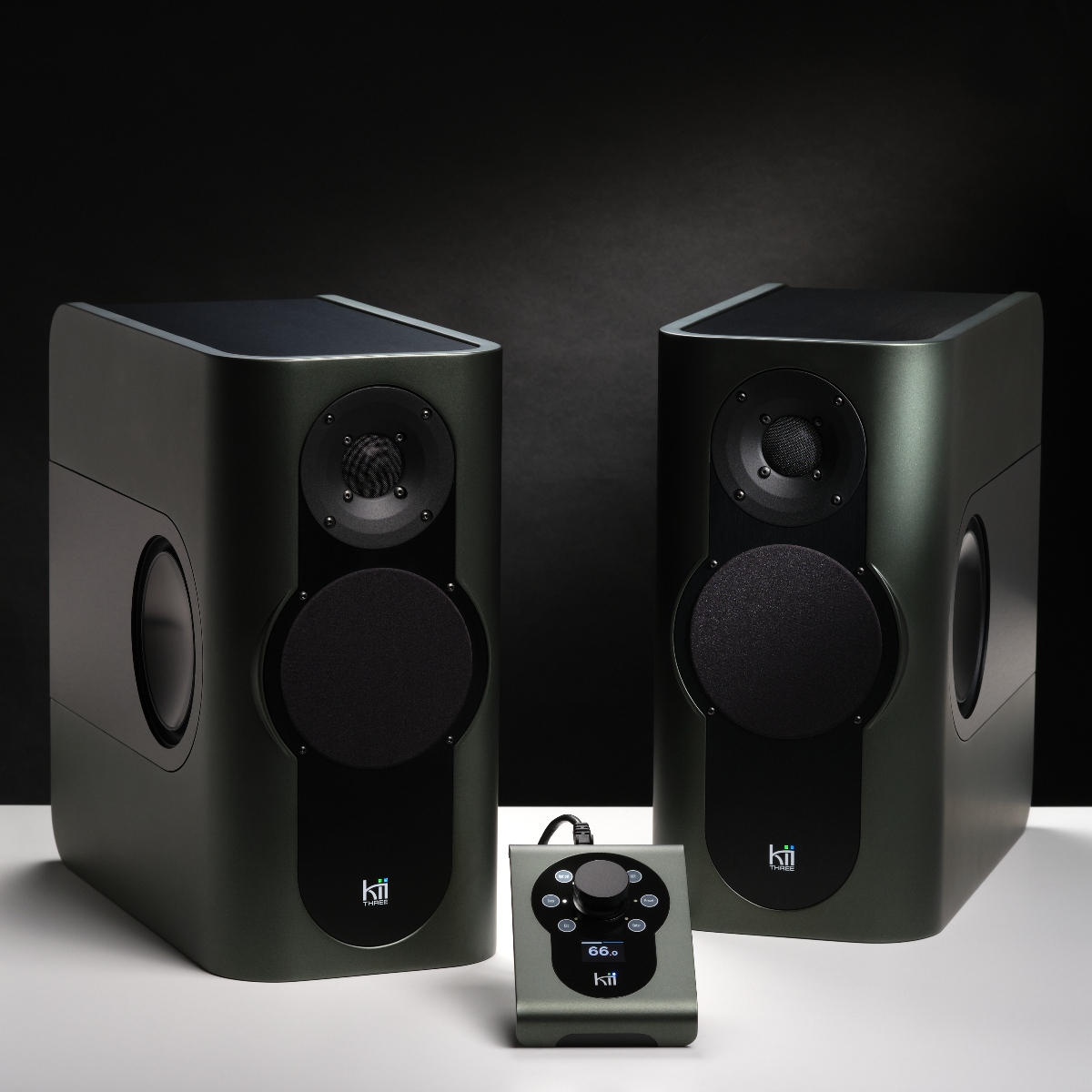

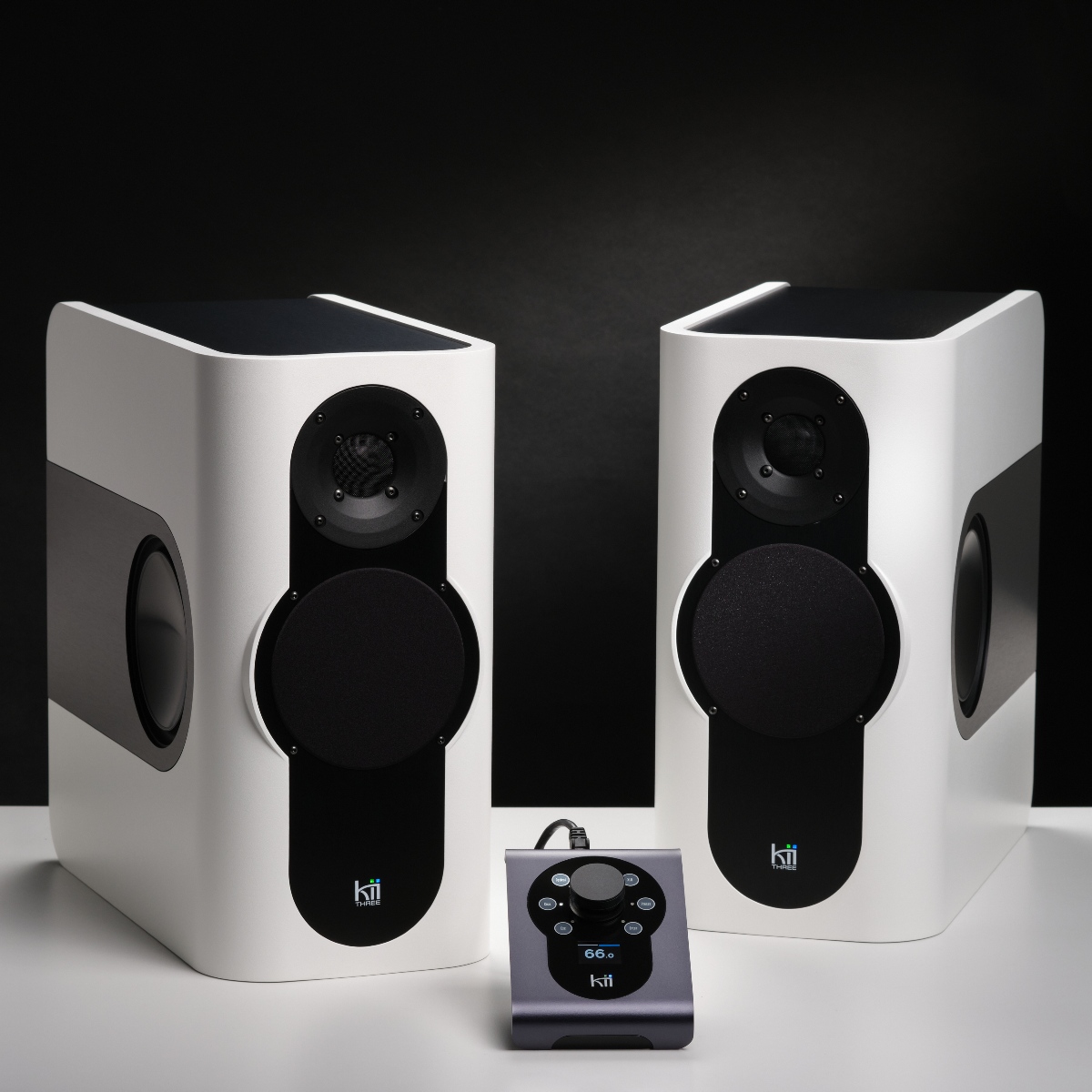

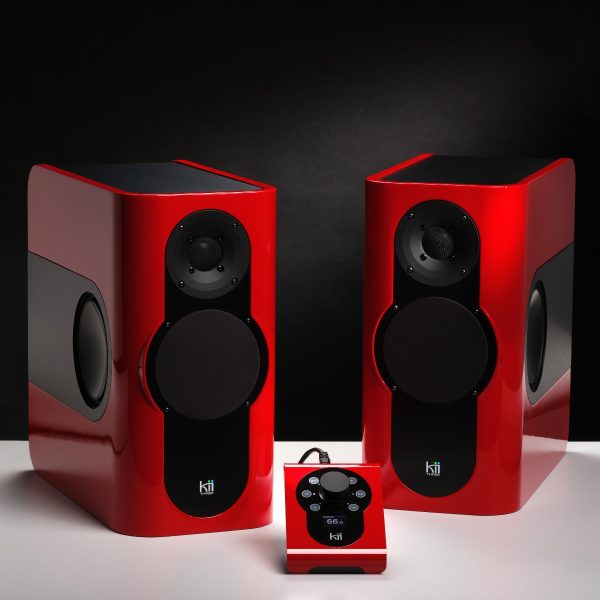

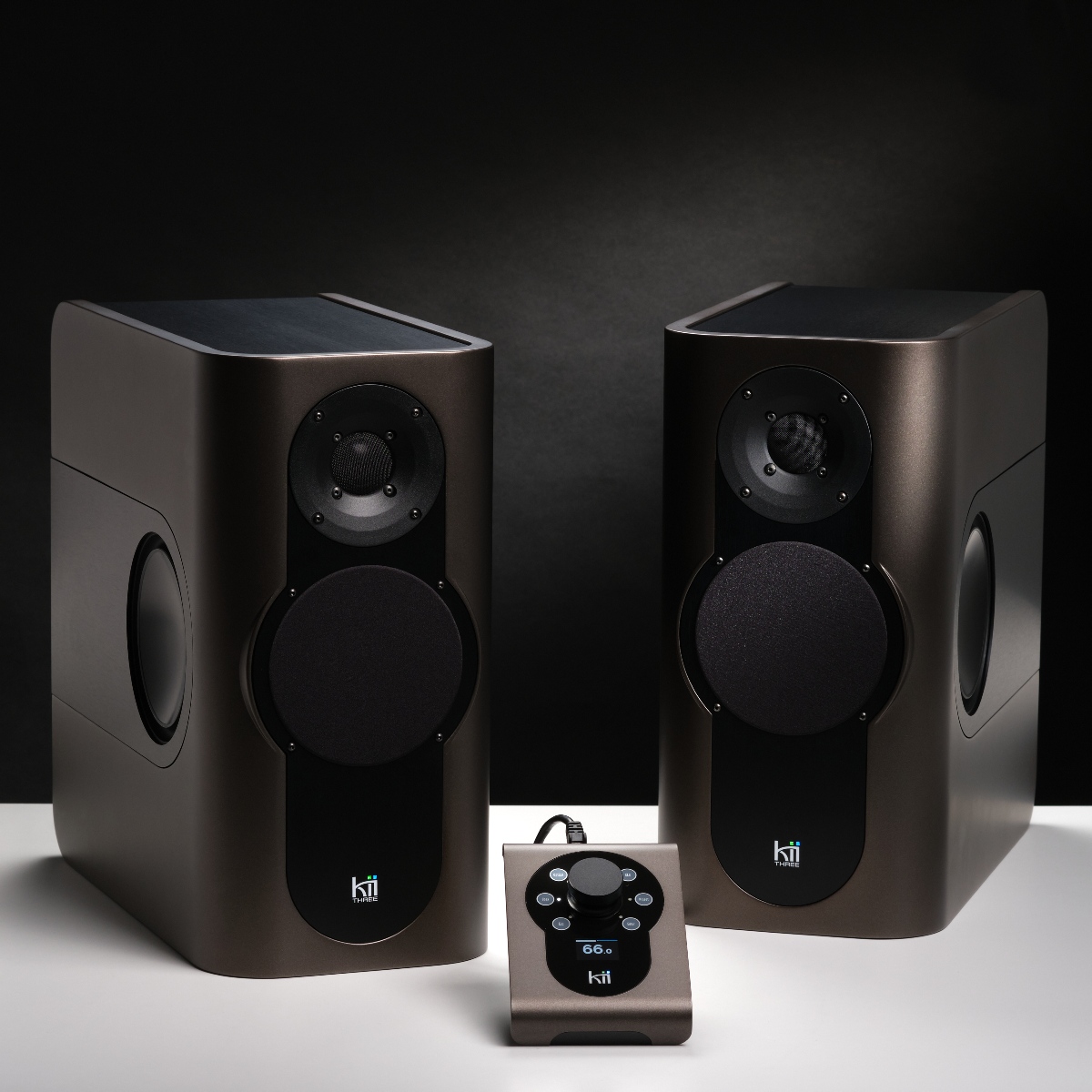

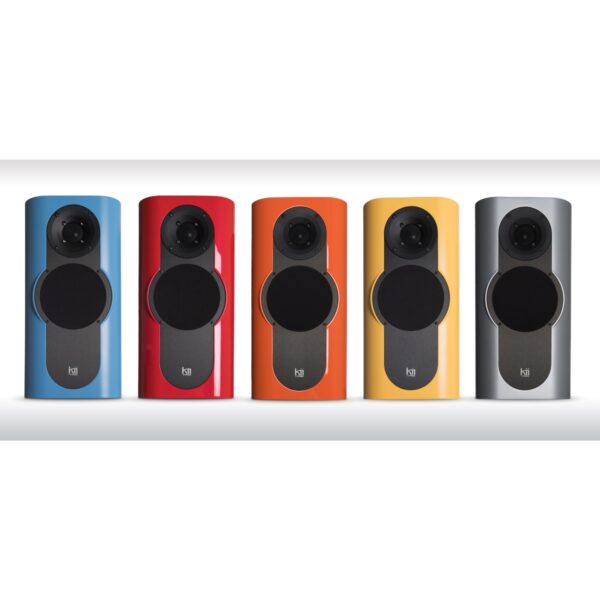

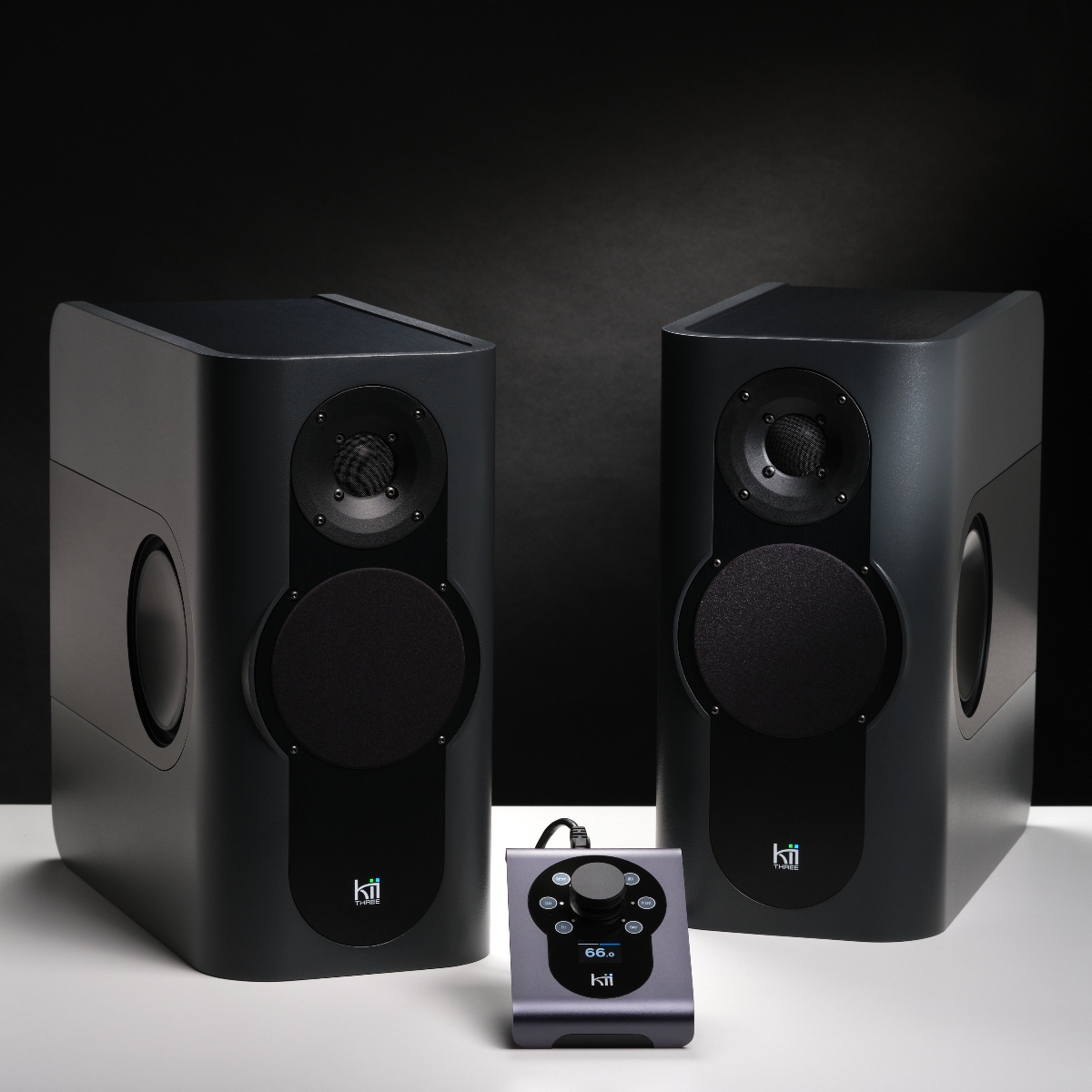

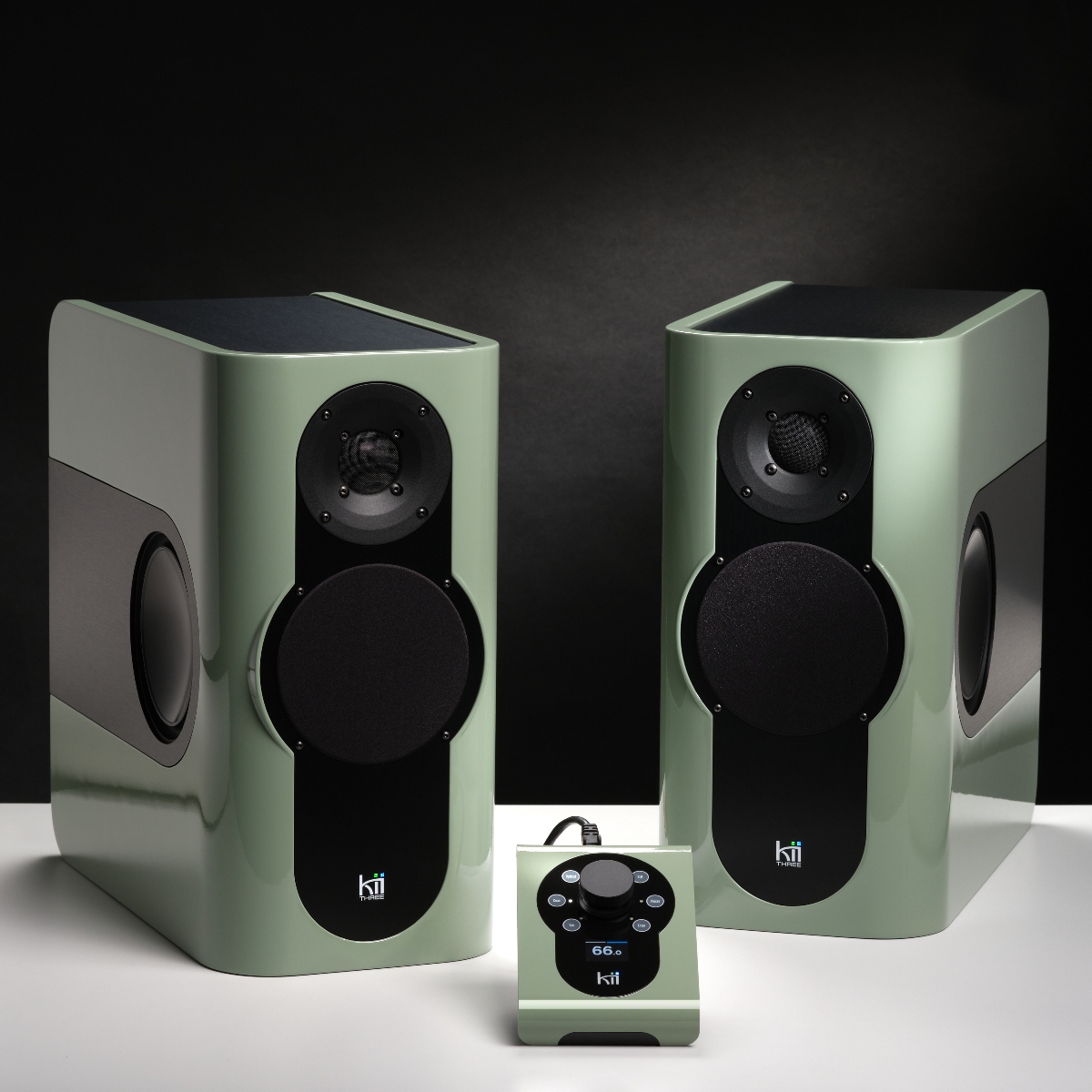

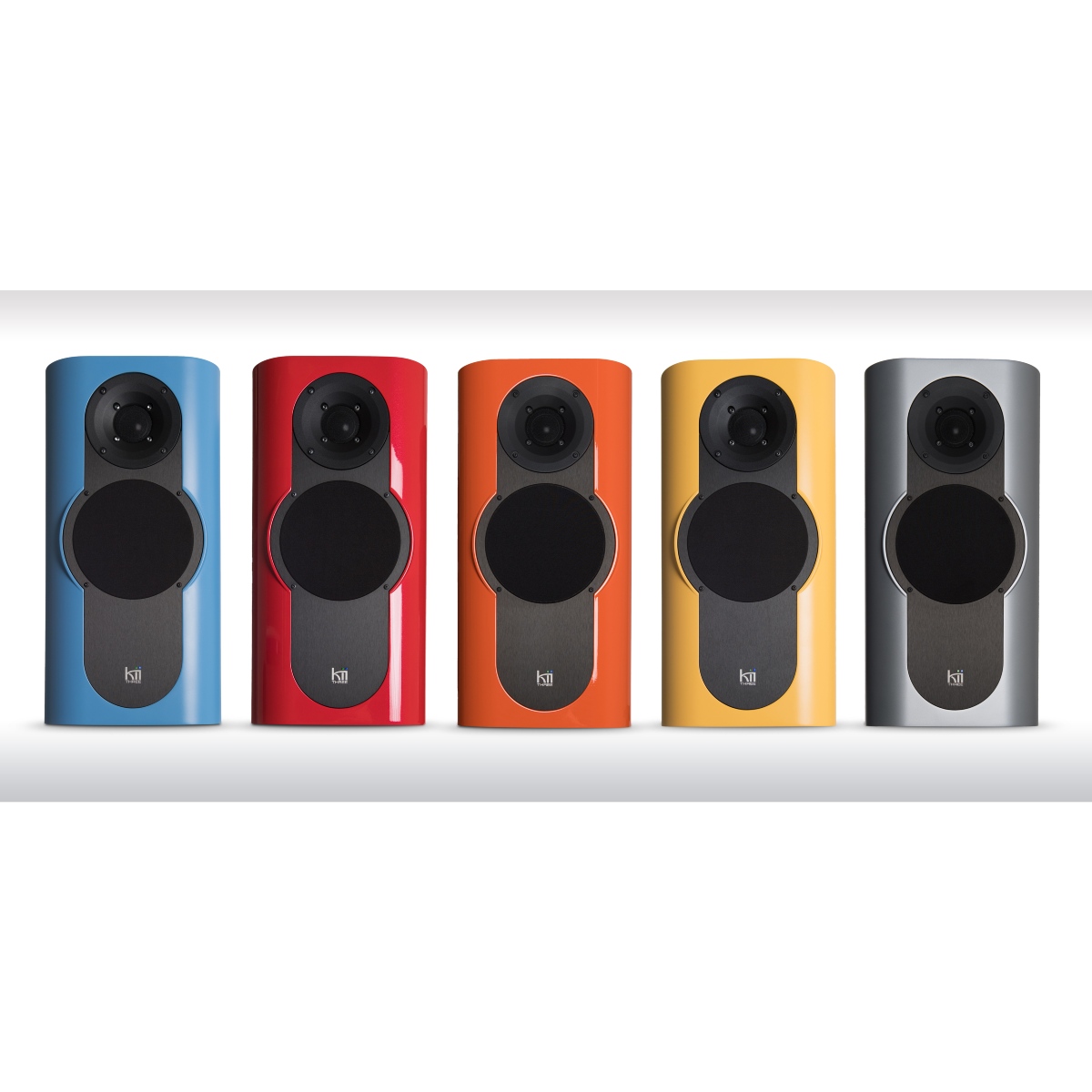

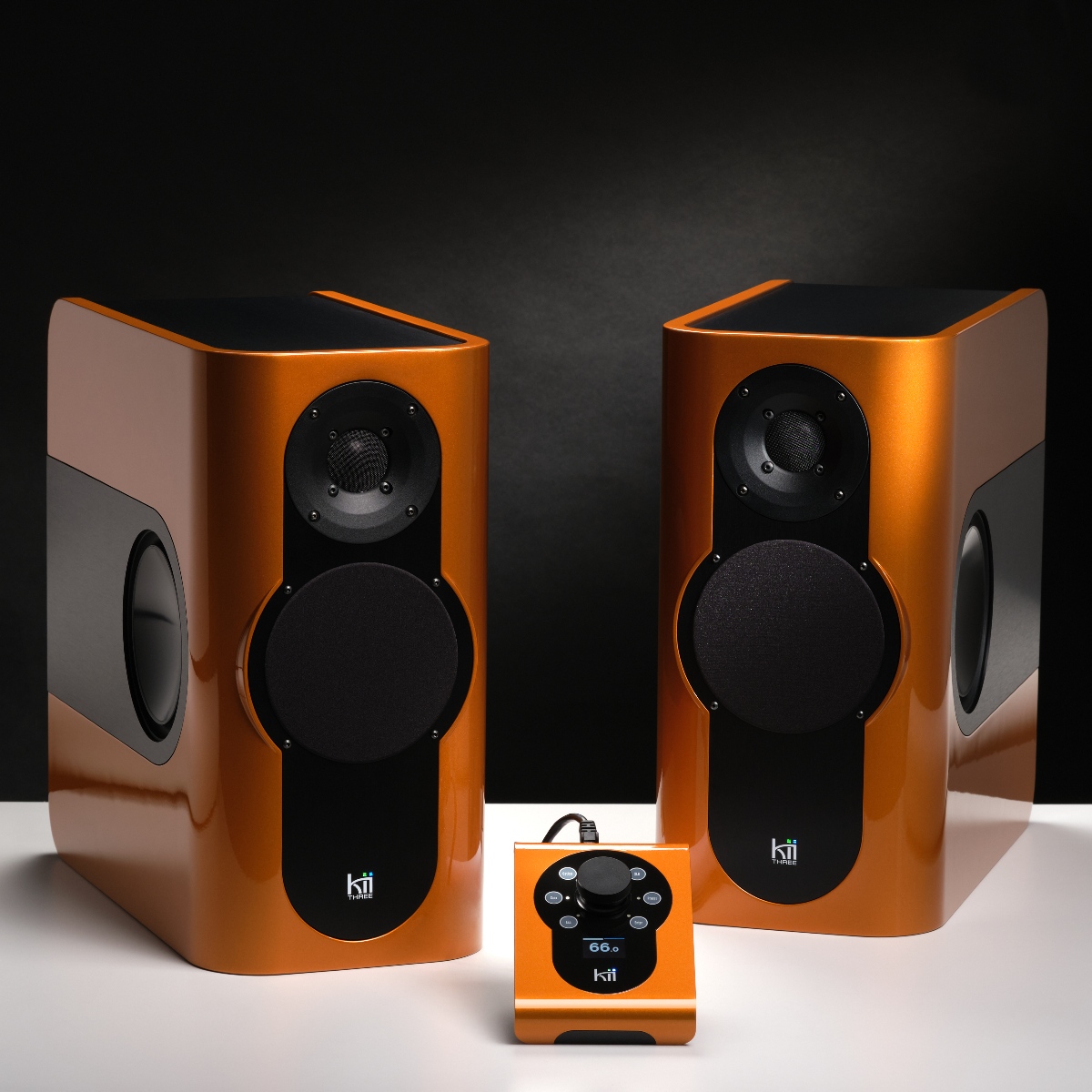

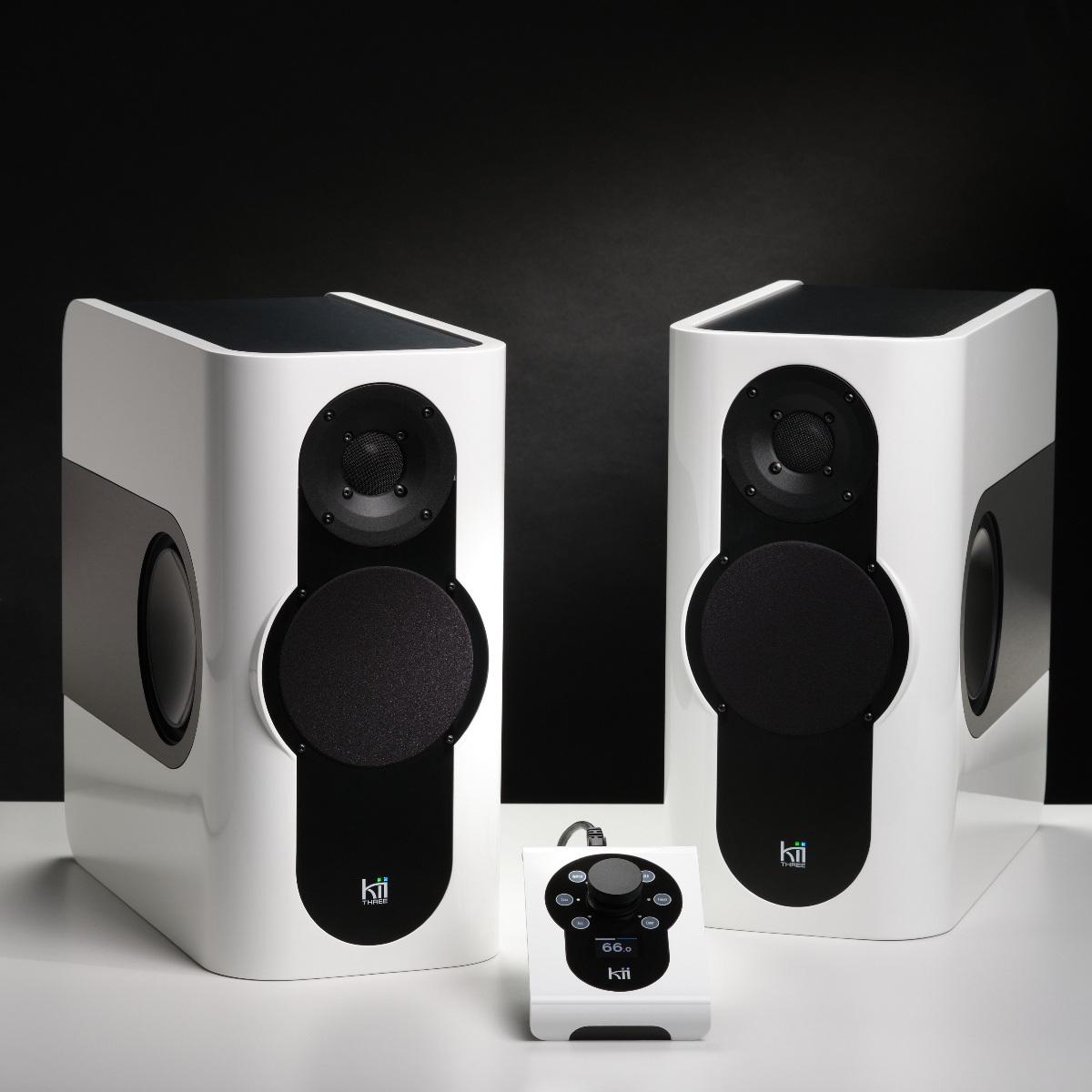

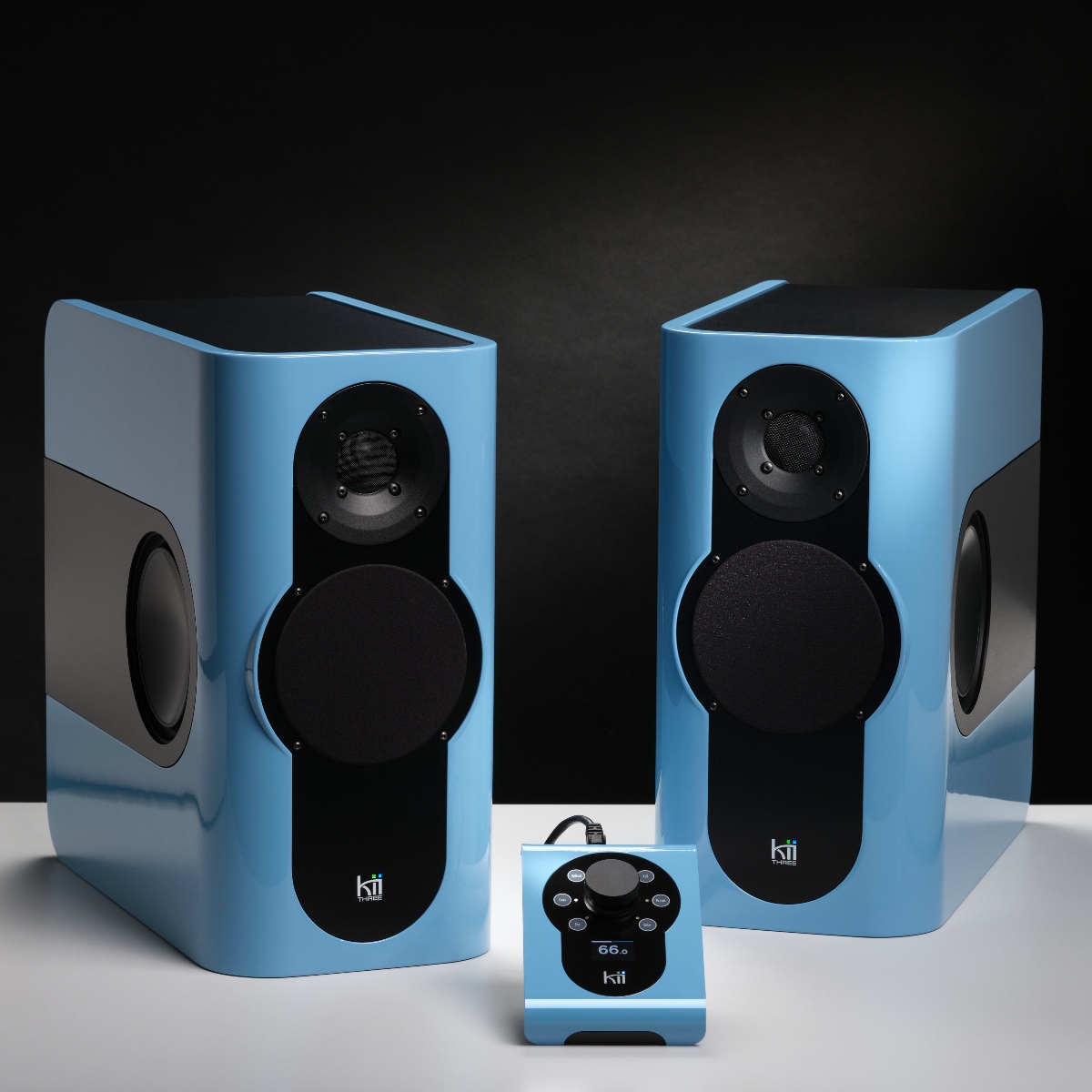

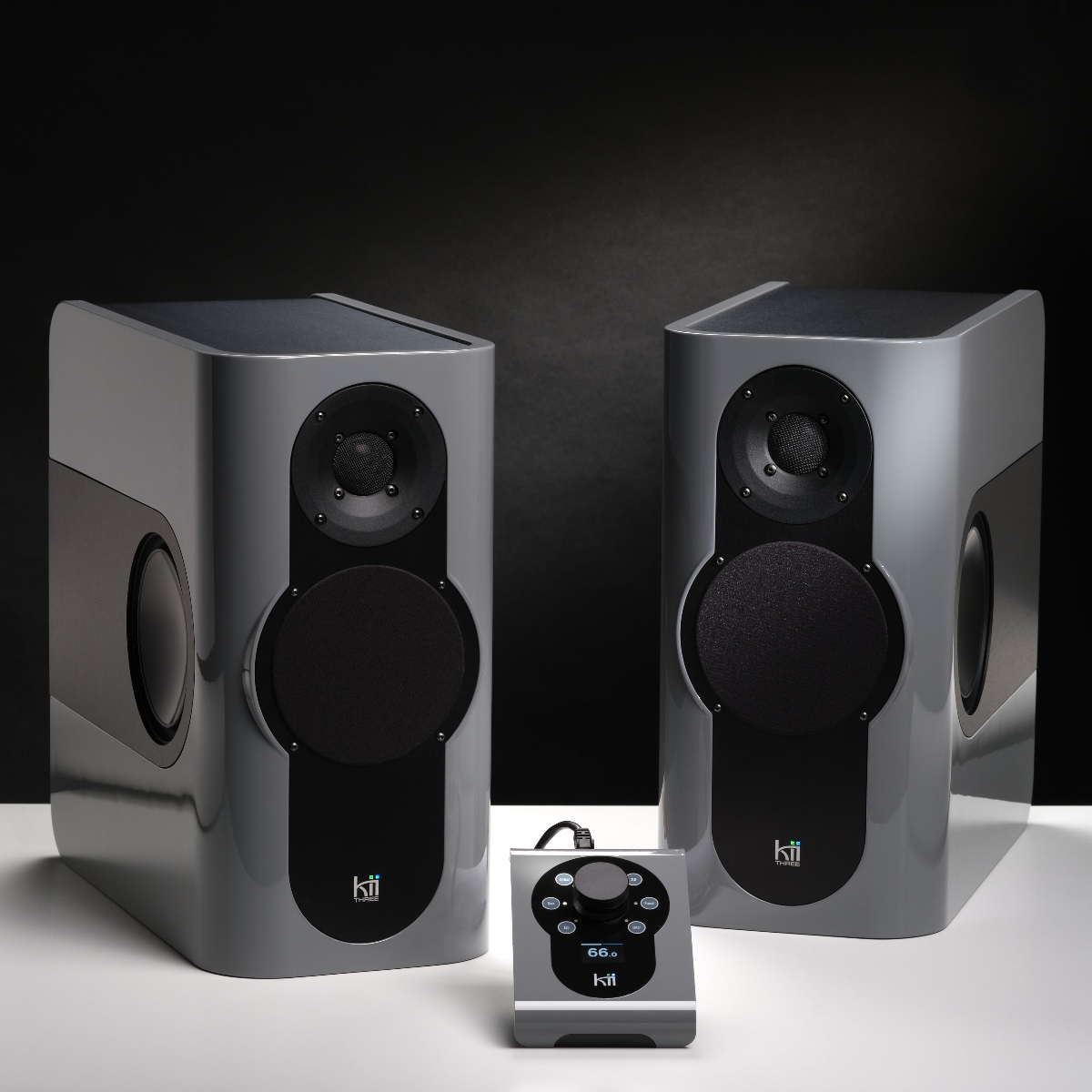

FineTouch White, FineTouch Dark Grey, Custom Colour, Graphite Satin Metallic, Iced Bronze Metallic, Azzurro High Gloss, Spring Green, Nardo Grey High Gloss, High Gloss White, Tempranillo Red Metallic, Phoenix Orange Metallic, Iced Green Metallic, Rosso Corsa High Gloss, Iced Titanium, Iced Sapphire Metallic
